NET-DECODER

Audio over IP system,

for receiving and playing audio contents from LAN/WAN which have been provided e.g. by a PC, music server, internet radio or the NET-ENCODER. The NET-DECODER features a built-in audio power amplifier (2 x 4 W via PoE or 2 x 7 W via external PSU) which allows a direct connection of the speakers. For reproduction, simply connect a standard speaker or amplifier to the NET-DECODER. An easy-to-use server software allows for reproduction of various audio contents and administration with a clearly arranged display and indication of the selected zone with information on the audio streams currently played. The basic version of the software is available free of charge and contains 5 licences.

• Audio over IP system for setting up IP-based PA systems using the existing LAN/WAN
• To be used as an announcement system or PA system
• LAN connection, Ethernet RJ45, 10/100 Mbps

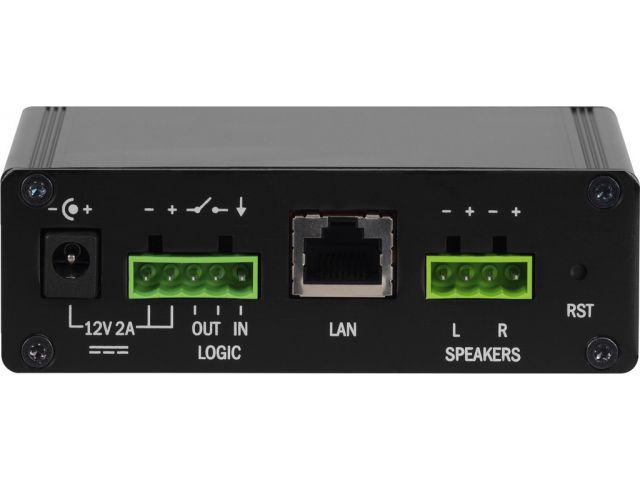

• Spring-loaded speaker terminals (stereo/mono) with automatic detection
• Impedance of the connected speakers: 4-16 Ом
• Audio output: 1 x 3.5 мм jack
• Relay output: ~ / DC 24 V/1 A
• Digital input: DC 5-24 V
• Micro SD card slot for storage media up to 32 GB, for reproduction of bacкгround music in case of network failure
• Power supply via PoE (IEEE 802.3af) or external power supply ( DC 12 V/2 A)
• Matching power supply PSS-1230DC is available at option
