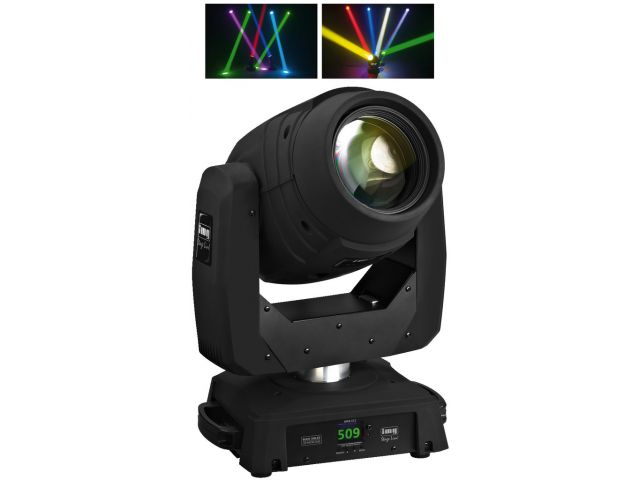

BEAM-100LED

Professional LED beam moving head

100 W LED with an extra high luminous efficiency, very powerful directed beam, very narrow beam angle (4 град.), allows for a highly concentrated light beam which can also be moved with great precision. This beam is a revolution in the event sector, a real improvement in the range of LED light effect units.

• High-performance LED, 100 W
• Highly effective when several devices are used in combination with a hazer
• Controllable via 14 or 8 DMX channels, selectable
• Music-controlled via integrated microphone
• Master/slave mode with automatic run of programs
• Horizontal and vertical resolution: 65,535 steps each (16 bits)
• Rotation angle: 540 град. pan, 270 град. tilt
• Adjustable limitation of rotation angle for PAN (540 град., 360 град., 180 град.) and TILT (270 град., 180 град., 90 град.)
• Static colour wheel with 14 colours plus 15 mixed colours, rotating colour wheel (rainbow effect)
• Static gobo wheel with 17 gobos plus open, variable adjustment of rotational speed, shaking effects with variable speed
• Strobe effects with variable speed
• Electronic diммer function (0-100%)
• Prism effect, electronic adjustment of prism rotation speed via DMX
• 8 automatic and sound-controlled programs each can be activated via DMX
• Blackout-while-moving function to be adjusted via DMX
• Electronic focus adjustment via DMX
• Control panel with LCD for addressing and preadjustments
• Long life with low power consumption
• Power supply: ~ 230 V/50 Гц/300 VA
• Размеры: 34 x 53 x 25 см
• Bec: 17.5 кг

Lighting effects with several devices.
