AKB-210DSP
AKB-210DSP
Active speaker module with DSP technology, 120 W,
for versatile applications.
  • 2-channel active module (class D)
  • 2 x 60 W/4 Ом
  • 3-channel DSP
  • S/PDIF input and output
  • Audio in possible via USB interface
  • Line output for subwoofer amplifier (third DSP channel)
  • Link input and output for synchronising two AKB-210DSP modules
  • External mini keypad with buttons for on/off and volume, connection via 50 см flat cable
  • Touch panel AKB-210TP as an alternative to the keypad is available at option
  • Integrated infrared receiver for optional infrared remote control AKB-210RC
  • Supplied with software (Windows* XP, Vista/7/8)
  • Parameters to be controlled via software: Biquad filter functions (bell, notch, all-pass, low-shelf, high-shelf, band-pass, high-pass, low-pass), delay, limiter, gain of the inputs, master volume, low cut
  • Short-circuit proof
  • Overtemperature protection
  • Bridged mode adjustable via software
  • Supplied with mains cable, USB cable, link cable (3.5 мм jack), mini keypad

Examples of application:
with one AKB-210DSP
  • Stereo system with passive filters
  • 2-way active system for controlling the bass speaker and tweeter of a speaker system
  • Bridged mode for operating a subwoofer or individual speaker with a higher power capability
with two AKB-210DSP
  • 2-way stereo system with active filters
  • 2-channel system with active subwoofer
  • 2-channel system with bridged power amplifiers for a higher power capability
additional third DSP channel
  • With the third line output to be prograммed by DSP, the range of applications can considerably be extended. Actively controlled 3-way speakers, fully active subwoofer/satellite systems and a variety of most versatile speaker concepts can be configured and realised by controlling additional power amplifiers.

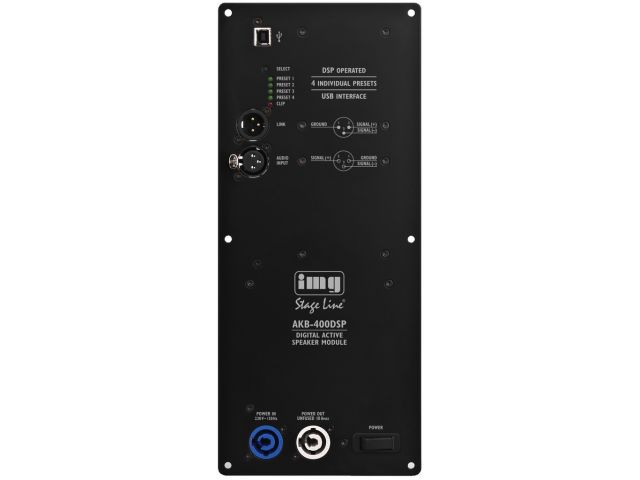

AKB-400DSP
AKB-400DSP
DSP-controlled digital amplifier technology,
for speaker building concepts.
Speaker systems with digital signal processors (DSP) allow completely new possibilities. With the active speaker module AKB-400DSP, this technology is now applied in speaker building concepts. It is both suitable for 2-way speakers and for the application in an active subwoofer. The prograммing is carried out via a user-friendly software. For this purpose, the computer is connected to the module via a USB cable. A total of 400 W at 4 Ом can be provided as desired, e.g. 400 W for subwoofer operation, 2 x 200 W for 2-way speakers or 350 W for a bass speaker and 50 W for a tweeter.
Active speaker module with DSP technology, 400 W
  • 2-channel active module (class D)
  • 400 W/4 Ом
  • 2-channel DSP
  • 4 presets can be prograммed and stored
  • Supplied with software (Windows* XP, Vista/7/8)
  • Parameters to be controlled via software: Biquad filter functions (bell, notch, all-pass, low-shelf, high-shelf, band-pass, high-pass, low-pass), delay, input gain control, master volume, low cut
  • Short-circuit proof
  • Overtemperature protection
  • Supplied w/o mains cable, matching mains cable AAC-115P is available at option
HOBBY HiFi 09/2016
"Up to 13 filters can be combined. You can even import frequency response measurements ... it is possible to combine the complete amplifier output power available in one channel which allows this module to provide power for a subwoofer, too."

Klang+Ton 01/2016
"The MenhirL is an extra transparent speaker; provides a dynamic and pleasant sound for most versatile applications; delivers a very emotional sound; meets every requirement - thats how a speaker should be. Readers project MenhirL in the Klang+Ton using SP-38A/500BS, MRD-300 and AKB-400DSP."

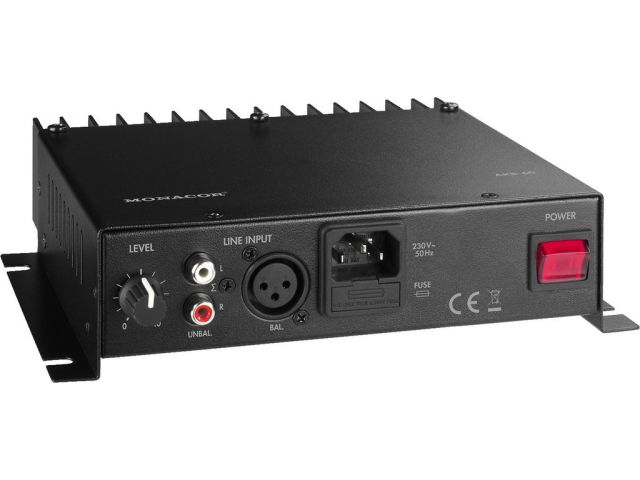

AKB-60
AKB-60
Active speaker module, mono, 45 W at 4 Ом
  • Active module for activating passive speakers
  • For mounting e.g. to the rear side of passive speakers
  • Line input via XLR or RCA
  • Adjustable master output
  • Very well-suited as a measuring amplifier of acoustic analysers
  • Fanless concept with large heat sink

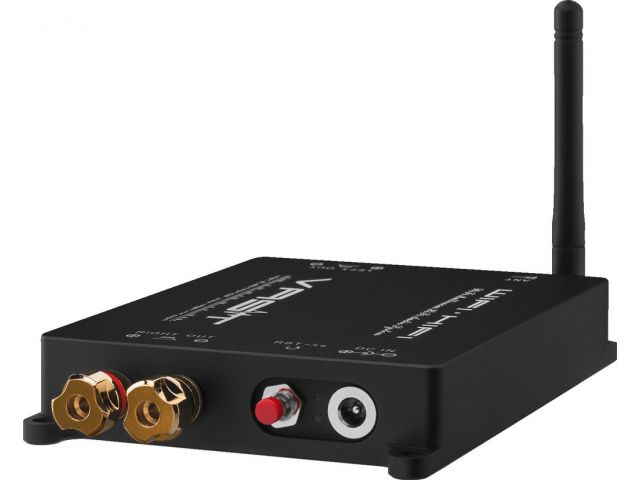

AKB-90WIFI
AKB-90WIFI
WLAN hi-fi multi-room amplifier
For a wireless audio streaming from your smartphone, tablet PC, stationary PC or Mac. The device receives audio signals via the network and transmits them to the connected speakers via the integrated amplifier.
Hi-fi multi-room amplifier (WLAN), 2 x 45 W
  • WLAN standard 802.11 B/G/N, 2.4 GГц
  • System is set up via integrated webserver
  • Multi-room function
  • Integrated digital hi-fi audio amplifier (class D), suitable for speakers with an impedance of 4-8 Ом
  • Network streaming via DLNA
  • Supported audio formats: MP3, WMA, AAC/AAC+, ALAC, FLAC, APE, WAV
  • Network protocols: TCP/IP, RDP, HTTP, UPNP
  • Gold-plated speaker terminals
  • Antenna with SMA antenna connection
  • Aluminium housing with mounting flange
  • Power is provided via enclosed power supply

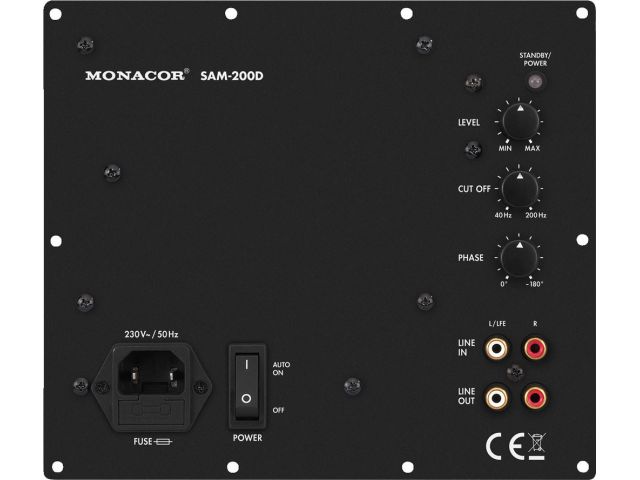

SAM-200D
SAM-200D
Active Subwoofer Modules for the Digital Age
Due to state-of-the-art technology in the digital D class, the digital active subwoofer modules from MONACOR provide a powerful bass reproduction in self-built subwoofer systems. The components feature a high power efficiency and provide an energy-saving operation. The lightweight design of these models which are available at an attractive price ensures a low total weight of the speaker system.
Class D active subwoofer module, 200 W at 4 Ом
  • High-performance active module in class D technology
  • Variable low-pass filter: 40-200 Гц (18 дБ)
  • Continuously adjustable phase control 0-180 град. for perfectly matching it to the main speakers
  • Line input, par. line output
  • Integrated bass boost of approx. 3 дБ at 40 Гц
  • High power reserves

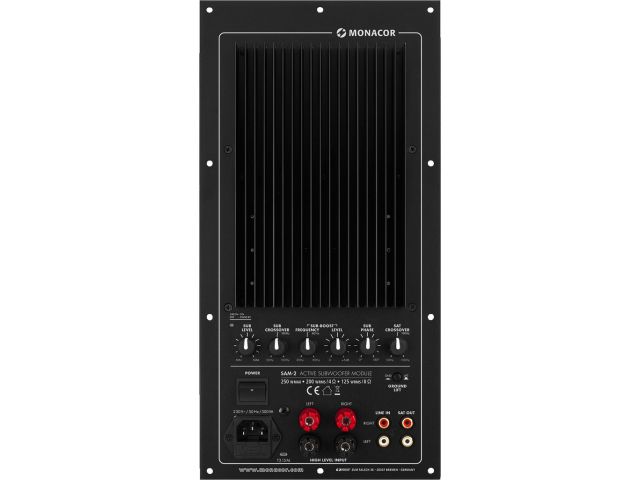

SAM-2
SAM-2
Impressive Component for a Perfect Bass Speaker
Due to the high-quality transistor technology, the well-established design of this active subwoofer module allows for an impressively warm sound of the self-built subwoofer system. Features and workmanship of this module perfectly meet all requirements. SAM-2 features great dynamic reserves.
Active subwoofer module, 200 W
  • High-power active module
  • 24 дБ subsonic filter
  • Variable low-pass filter: 50-150 Гц (18 дБ)
  • Semiparametric bass boost (variable 30-50 Гц midrange with boost up to 6 дБ, continuously adjustable)
  • Continuously adjustable phase control 0-180 град. for uncompromising room correction and an optimum set-up of your speakers
  • Variable high-pass filter: 50-150 Гц (12 дБ) for equalizing the bass frequencies of the satellite amplifier and the satellite speakers
  • Ground lift switch from the studio technology to prevent hum interference
  • Various protective circuits against short circuit, overheating and DC voltage overload
  • Perfect drive for bass speakers with a diameter of up to 46 см
  • Impressive sound and workmanship
The high-quality active high-pass filter of the SAM-2 with versatile adjustments can conveniently be used as a bass relief of the main speakers and for optimising the sound. However, a regulated preamplifier output (Pre Out) is required for this. This kind of output is partly present at high-quality separable full amplifiers (Pre Out/Main In) or automatically provided by preamplifier/power amplifier combinations or when using mixers.
Klang+Ton 02/2013
SPH-10M, MSH-115HQ, RBT-95SR and SAM-2 in the speaker building concept 2DOT1

"A system of appealing design which provides an equally nice sound ... the speaker building concept features an amazing adaptability and almost unlimited settings ... incredibly suitable for everyday use, is capable of reproducing any kind of music and suitable for home cinema systems. The system provided an absolutely amazing sound when tested in the audio room. The small speakers appeared to reproduce the complete bass range. There was no way of locating the subwoofer. The tactics with the tiles achieved great results ... nothing trembles, even though a powerful bass speaker of a high power capability is set-up in the room. The satellites provide an extra light and high-resolution sound."

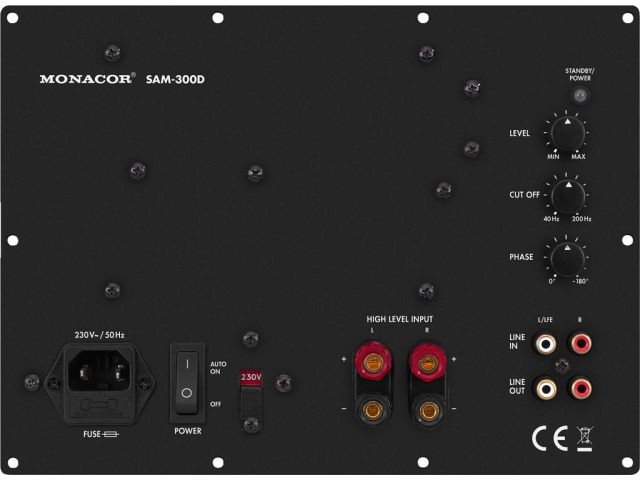

SAM-300D
SAM-300D
Active Subwoofer Modules for the Digital Age
Due to state-of-the-art technology in the digital D class, the digital active subwoofer modules from MONACOR provide a powerful bass reproduction in self-built subwoofer systems. The components feature a high power efficiency and provide an energy-saving operation. The lightweight design of these models which are available at an attractive price ensures a low total weight of the speaker system.
Class D active subwoofer module, 300 W at 4 Ом
  • High-performance active module in class D technology
  • Variable low-pass filter: 40-200 Гц (18 дБ)
  • Continuously adjustable phase control 0-180 град. for perfectly matching it to the main speakers
  • Line input, par. line output
  • Integrated bass boost of approx. 3 дБ at 40 Гц
  • High-level inputs for parallel connection to the speaker cables
  • High power reserves

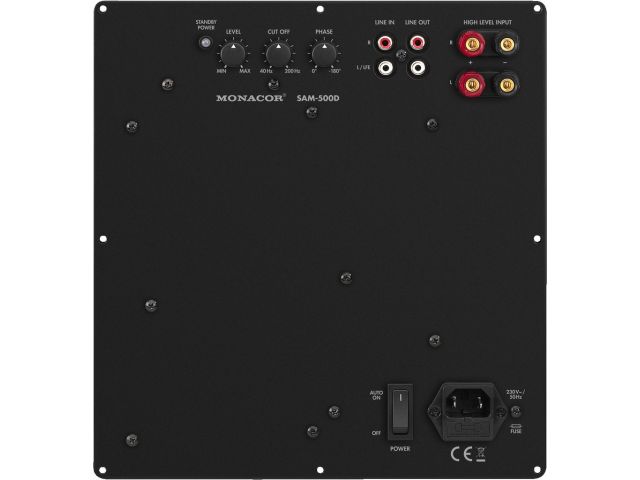

SAM-500D
SAM-500D
Active Subwoofer Modules for the Digital Age
Due to state-of-the-art technology in the digital D class, the digital active subwoofer modules from MONACOR provide a powerful bass reproduction in self-built subwoofer systems. The components feature a high power efficiency and provide an energy-saving operation. The lightweight design of these models which are available at an attractive price ensures a low total weight of the speaker system.
Class D active subwoofer module, 500 W at 4 Ом
  • High-performance active module in class D technology
  • Variable low-pass filter: 40-200 Гц (18 дБ)
  • Continuously adjustable phase control 0-180 град. for perfectly matching it to the main speakers
  • Line input, par. line output
  • Integrated bass boost of approx. 3 дБ at 40 Гц
  • High-level inputs for parallel connection to the speaker cables
  • Very high power reserves for bass speakers with a diameter up to 46 см
