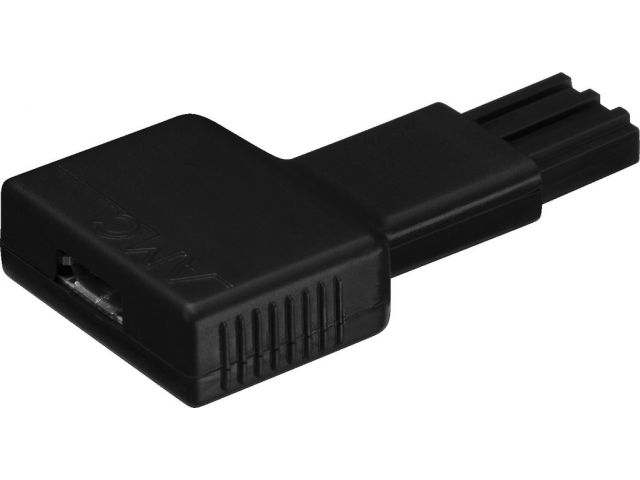

COM-USB
COM-USB
USB adapter
  • For connecting a PC/laptop to motion detector SOUTDOOR-T
  • Micro-B USB jack

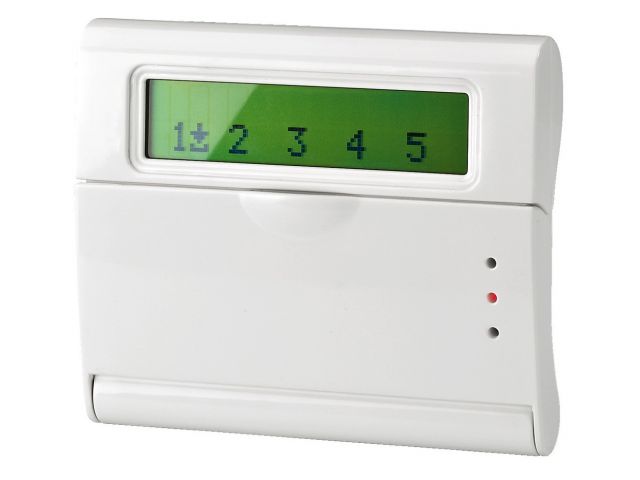

DA-8000RC
DA-8000RC
Additional
LCD alarm keypad,
for alarm control panel DA-8000. English menu control.

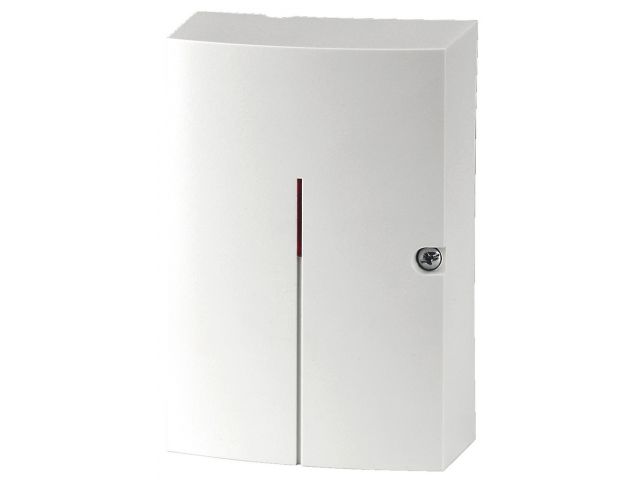

DA-8000
DA-8000
Alarm control panel with 8 loops and LCD alarm keypad
  • Microprocessor-controlled
  • 8 loops, to be prograммed as desired
  • 1 tamper loop
  • One alarm output each for siren (500 mA max.) and flash (250 mA max.)
  • Operation via English menu control, prograммing and display via remote LCD alarm keypad
  • 32-digit backlit LCD
  • Connection of up to four LCD alarm keypads to one alarm control panel possible (optional LCD alarm keypad: DA-8000RC)
  • Prograммable output for various features (e.g. telephone dialling unit)
  • Alarm/event memory for up to 256 events max. (without date and time) or 64 events with date and time
  • Maximum storage of up to 9 user codes
  • Connection facility for key switch
  • Instruction manual in 4 languages (D, GB, F, I)

Please order matching rechargeable lead battery NPA-12/7 separately.

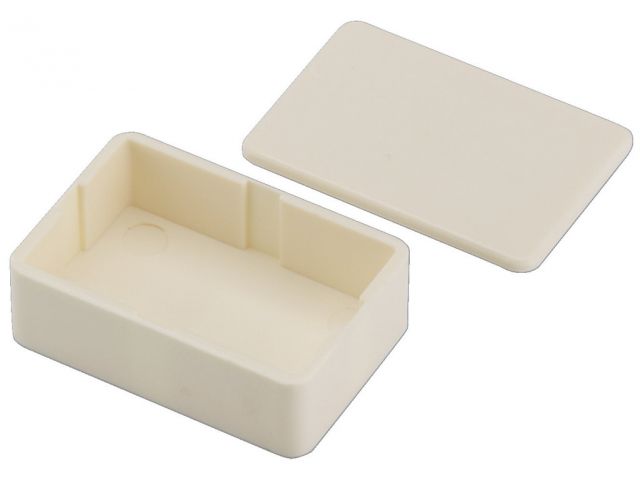

DB-247/WS
DB-247/WS
Junction box
  • Small version, empty
  • 44 x 30 x 15 мм

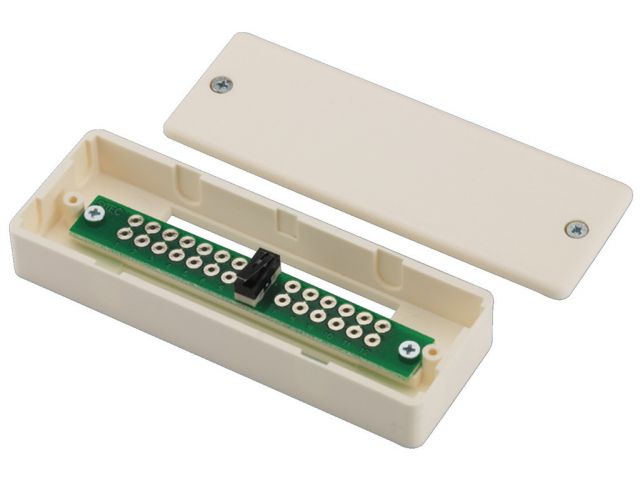

DB-264/WS
DB-264/WS
Junction box
  • 1 x 12 poles, PCB
  • Tamper switch
  • 40 x 113 x 20 мм
FF-50/WS
FF-50/WS
Reed contact,
to be used in alarm systems for monitoring and securing doors and windows.
  • For flush-mounting, pulsed operation
  • Designed as NC contact/opening detector, contact closed when magnet distance < 20 мм
  • Contact rating: DC 30 V/0.1 A max.
  • Magnet (AINiCo500): диам. 8 мм x 30 мм
  • Connection cable: 2 cores
  • Cable length: 2 m
Attention:
The specifications stated are maximum values. Even a short-term overload may lead to damage of the contact! The reed contact is suitable for use with DC voltage only!
FF-50S/WS
FF-50S/WS
Reed contact
to be used in alarm systems for monitoring and securing doors and windows.
  • Optionally flush mounting or surface mounting with supplied cases, pulsed operation
  • Designed as NC contact/opening detector, contact closed when magnet distance < 20 мм
  • Contact rating: DC 30 V/0.1 A max.
  • Magnet (AINiCo500): диам. 8 мм x 30 мм
  • Connection cable: 2 cores
  • Cable length: 2 m
  • Type of mounting: for parallel mounting
Attention:
The specifications stated are maximum values. Even a short-term overload may lead to damage of the contact! The reed contact is suitable for use with DC voltage only!
GD-02/DIN
GD-02/DIN
GSM dialling and control unit,
for DIN rail installations in control cabinets. Allows you to easily operate connected devices via remote control. Sends SMS messages, alerts via telephone and activates relays. The GD-02/DIN can be prograммed via SMS message or the free software GD-Link. A SIM card is required for operation of the GD-02/DIN (not supplied).
  • 2 alarm inputs, 1 inpute for temperature sensor GD-02T (not supplied)
  • 1 relay output (~ 230 V/16 A), 1 output ( DC 24 V/0.1 A)
  • Switching capacity: ~ 250 V/ DC 24 V, 16 A max.
  • Up to 10 telephone numbers can be assigned to each alarm event
  • Power supply: ~ 230 V/50 Гц/0.5 VA, 1.2 VA max.
  • Integrated rech. battery for emergency power supply of the GD-02/DIN for up to 3 hours (in case of power failure)
  • With the optional temperature sensor GD-02T, can also be used for monitoring or regulating the temperature
  • Admissible ambient temperature: -20 град.C to +50 град.C
  • Размеры: 90 x 36 x 58 мм

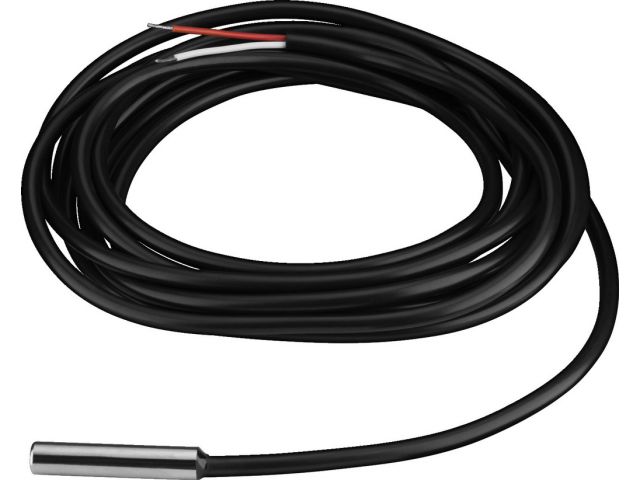

GD-02T
GD-02T
Temperature sensor,
for connection to the GSM dialling and control unit GD-02/DIN. In combination with the GD-02/DIN, it can be used for measuring the temperature and monitoring the temperature limit (thermostat).
GD-04A
GD-04A
Housing front with integrated emergency power supply
  • Matching the GD-04K ( DC 12 V/1.5 A)
  • In case of a power failure, provides a standby time for each function of 12 hours min.
  • To be mounted instead of the original housing cover

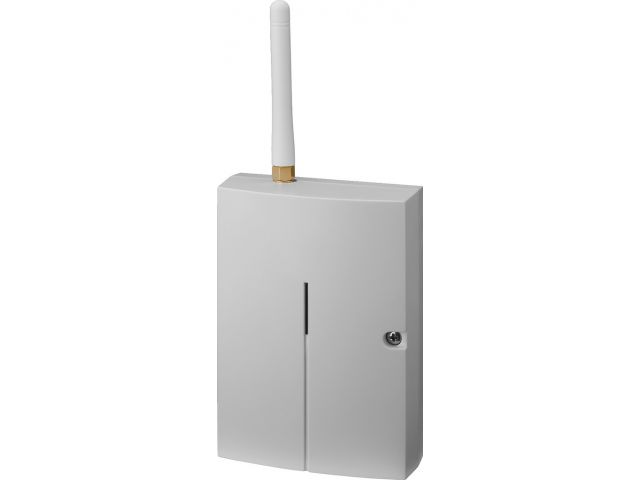

GD-04K
GD-04K
GSM dialling and control unit
The dialling unit features 4 alarm inputs for activating SMS messages and/or for calling up to 100 authorised telephone numbers. Additionally, 2 relay outputs can be controlled via SMS or telephone call. The GD-04K can be prograммed via SMS coммands or free web portal. A SIM card with deactivated PIN code request is required for operation (not supplied).
  • 4 alarm inputs
  • 2 relay outputs (~ 230 V/5 A)
  • Power supply via supplied plug-in power supply
  • Prograммing via USB port with a PC/laptop (free GD-Link software available) or SMS coммands
  • Admissible ambient temperature: -10 град.C to +40 град.C
  • Размеры: 76 x 110 x 33 мм (w/o antenna)
  • Accessories available at option:
  • GD-04A: Emergency power supply
  • AN-05: Rod antenna for extending the operating range

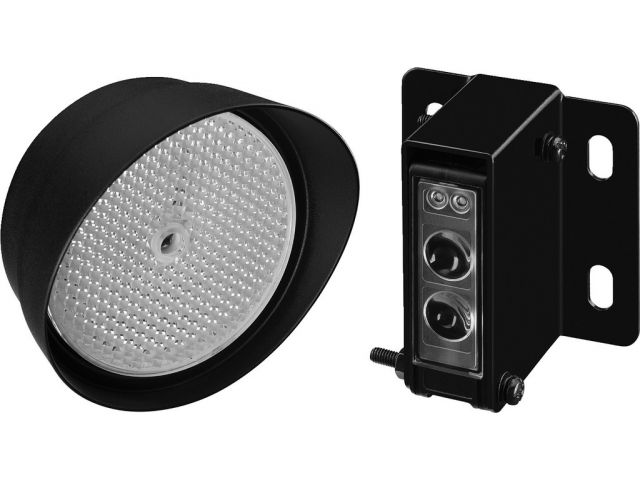

IRS-100
IRS-100
Infrared reflection light barrier,
with relay output and LED indication.
  • Operating range: 0.2-14 m
  • Relay contact rating: 30 V/2 A
  • 2 m connection cable, 5 cores, 22AWG
  • Weatherproof and hose-proof (IP66)
  • Power supply: 12-30 V/100 mA
  • Admissible ambient temperature: -20 град.C to +55 град.C

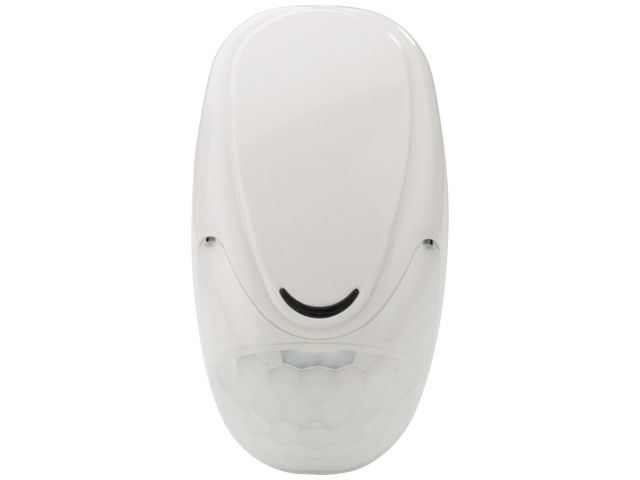

MOUSE-09
MOUSE-09
Dual infrared motion detector,
with infrared detection and microwave detection.
  • Higher detection reliability and prevention of false alarms due to dual detection (infrared and 10 GГц microwave technology)
  • Tamper switch
  • Walk test
  • Adjustable sensitivity of the microwave detection
  • 3 different configurations can be selected with the detector
  • 4 selectable EOL resistors
  • Matching wall bracket SN-1 is available at option

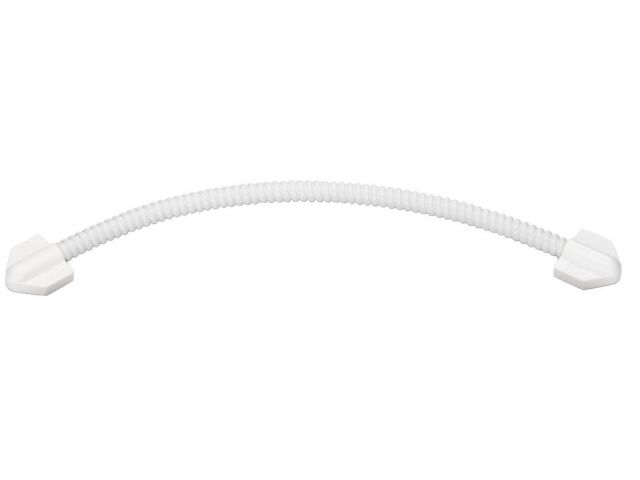

MPT-30/WS
MPT-30/WS
Cable protecting sleeves
  • Length: 300 мм, for protecting alarm wires at doors and windows, etc.
  • Equipped with 2 mounting flanges

MPT-30/WS = белый, inside: диам. 7 мм
MPT-30M = chromium-plated, inside: диам. 6 мм

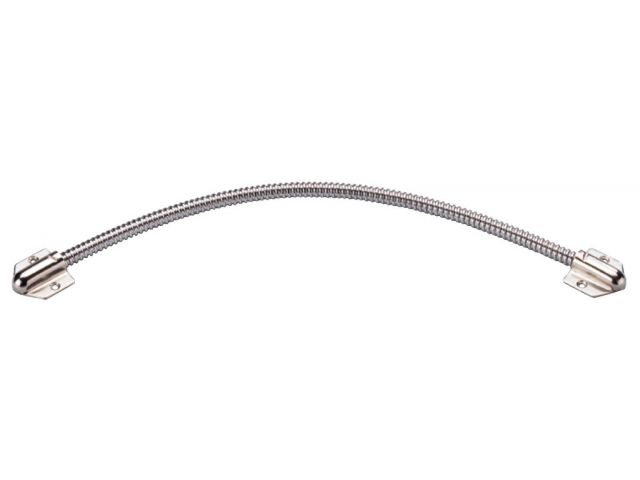

MPT-30M
MPT-30M
Cable protecting sleeves
  • Length: 300 мм, for protecting alarm wires at doors and windows, etc.
  • Equipped with 2 mounting flanges

MPT-30/WS = белый, inside: диам. 7 мм
MPT-30M = chromium-plated, inside: диам. 6 мм

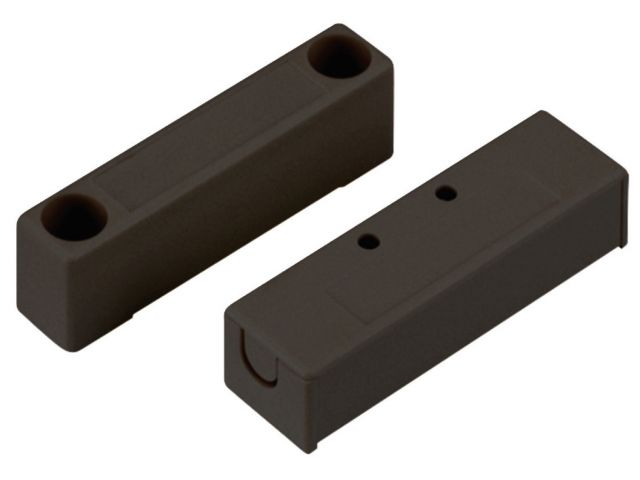

SAS-4/BN
SAS-4/BN
Reed contacts,
to be used in alarm systems for monitoring and securing doors and windows.
  • Brown (BN) or белый (WS) housing
  • Surfacing mounting, pulsed operation
  • Designed as NC contact/opening detector
  • Contact rating: DC 30 V/0.1 A max.
  • Contact: 50 x 12 x 14 мм
  • Magnet: 50 x 14.5 x 10 мм
  • Type of mounting: for parallel mounting
Attention:
The specifications stated are maximum values. Even a short-term overload may lead to damage of the contact! The reed contact is suitable for use with DC voltage only!

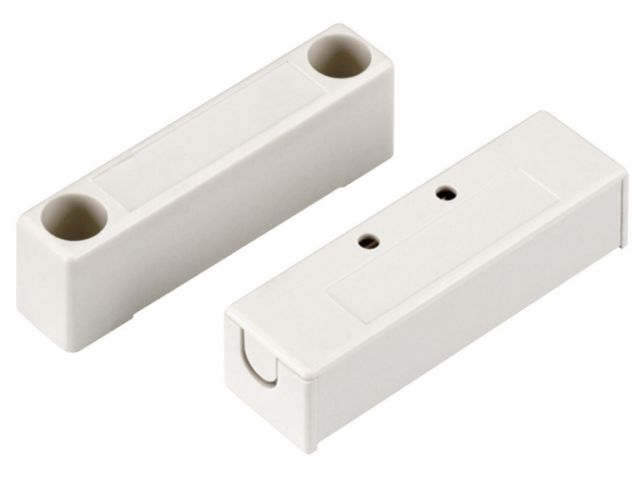

SAS-4/WS
SAS-4/WS
Reed contacts,
to be used in alarm systems for monitoring and securing doors and windows.
  • Brown (BN) or белый (WS) housing
  • Surfacing mounting, pulsed operation
  • Designed as NC contact/opening detector
  • Contact rating: DC 30 V/0.1 A max.
  • Contact: 50 x 12 x 14 мм
  • Magnet: 50 x 14.5 x 10 мм
  • Type of mounting: for parallel mounting
Attention:
The specifications stated are maximum values. Even a short-term overload may lead to damage of the contact! The reed contact is suitable for use with DC voltage only!

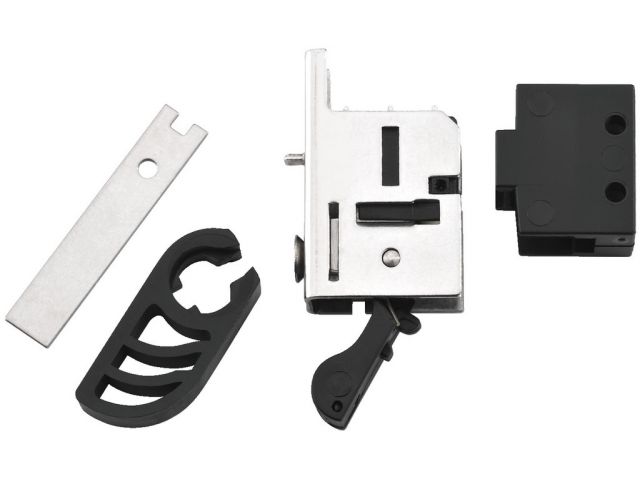

SAS-5VDS
SAS-5VDS
Electric lock release,
for mounting into standard door locks.
  • When locking the door, the bolt activates the contact (NO/NC, DC 30 V/0.1 A)
  • Micro switch IP50
  • Contact material: fine silver
  • Solder connection
VdS (German assn. of property insurers) approval number: G107060

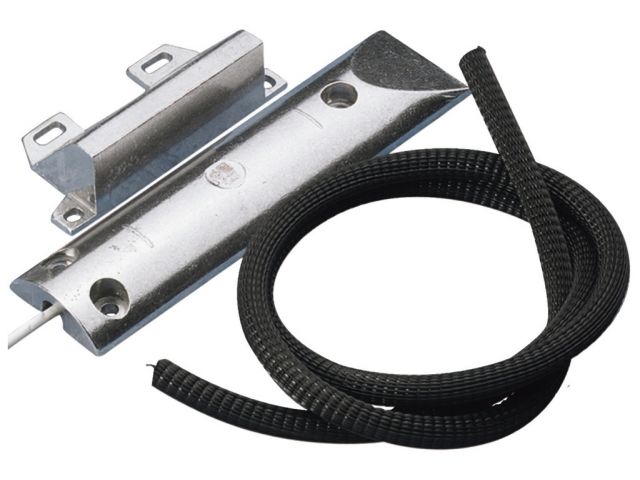

SAS-6VDS
SAS-6VDS
Rolling gate magnetic switch
  • Diecast
  • NC contact ( DC 20 V/0.5 A/10 W), closed when magnet distance < 20 мм, tamper loop
  • 1.8 m cable, 4 cores
  • Contact: 45 x 15 x 180 мм, magnet: 104 x 30 x 47 мм
VdS (German assn. of property insurers) approval number: G191589

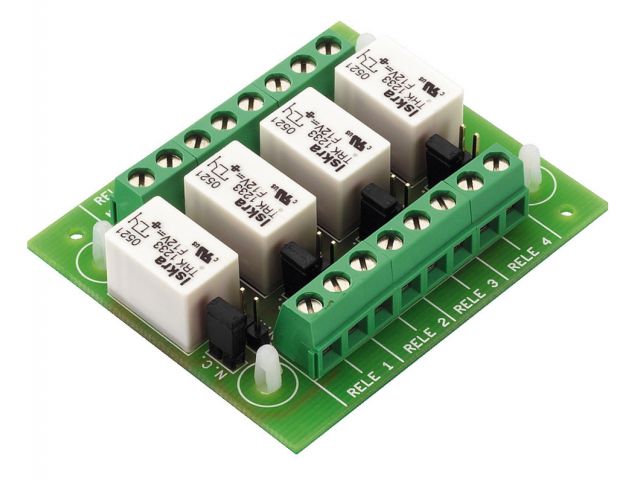

SC-35
SC-35
12 V relay module,
e.g. for extending alarm control panels with semiconductor outputs.
  • 4 independent relays
  • Outputs alternatively NO/NC
  • Current consumption: 12 V/18 mA per relay
  • Relay contact: 1 A max.

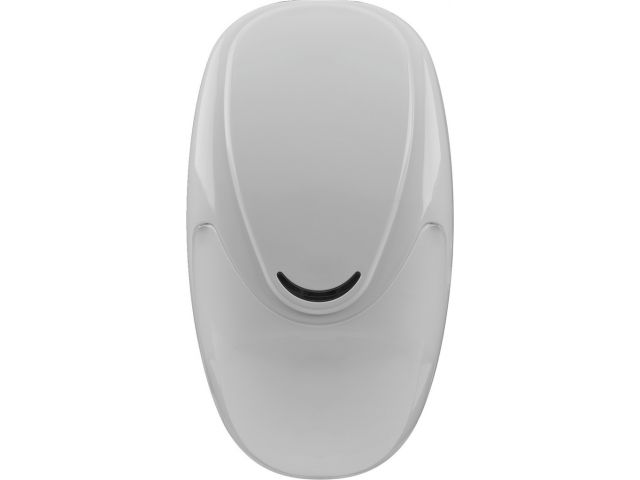

SMILE-19
SMILE-19
Infrared motion detector,
microprocessor-controlled.
  • Digital technology
  • Pulse counter for preventing false alarms
  • Tamper switch
  • Walk test
  • Matching wall bracket SN-1 is available at option

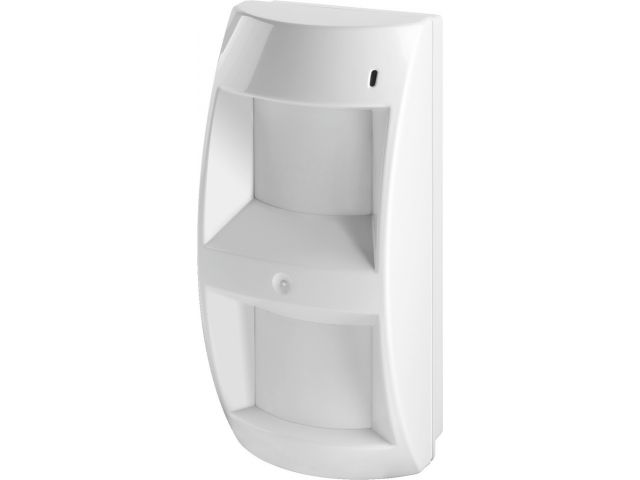

SOUTDOOR-L
SOUTDOOR-L
Dual-zone PIR motion detector,
for outdoor applications.
  • DIP switch for selecting detection characteristics
  • Status LED
  • Tamper switch
  • Walk test
  • Supplied with 4 additional fresnel lenses for volumetric (1x), horizontal (1x) and vertical (2x) curtain
  • Matching wall bracket SN-3 is available at option

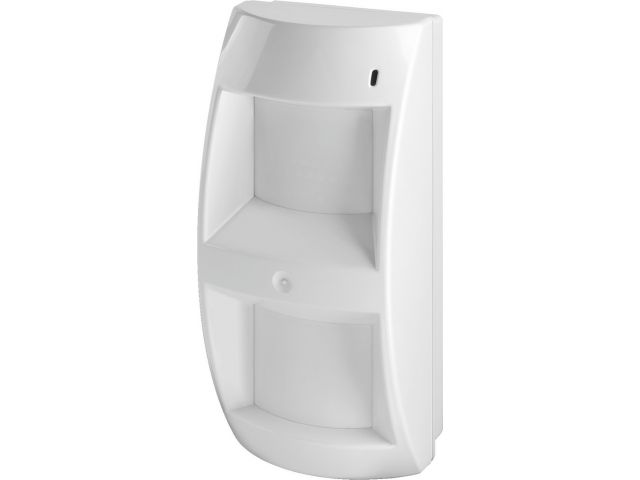

SOUTDOOR-T
SOUTDOOR-T
Dual-zone PIR motion detector,
with infrared detection and MW detection, for outdoor applications.
  • Prograммing of motion detector via free software using a PC or laptop
  • For superior coverage and iммunity to false alarms due to additional MW detection
  • DIP switch for selecting detection characteristics
  • 4 relay outputs, to be configured as required
  • Bicoloured status LED
  • Tamper switch
  • Walk test
  • Matching wall bracket SN-3 is available at option

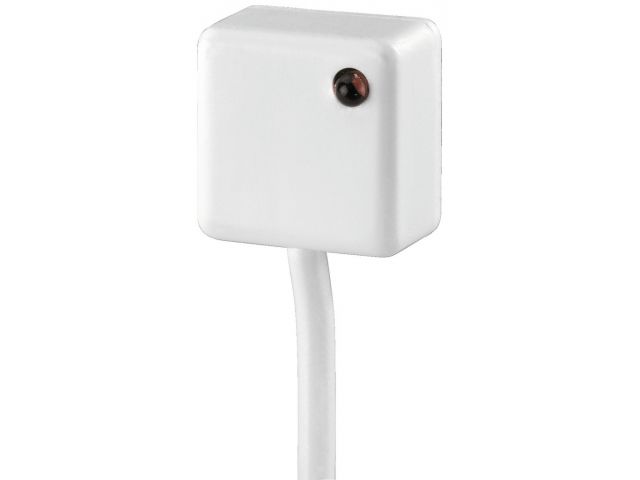

VDS-2GBD/WS
VDS-2GBD/WS
Glass break sensor,
with 4 m connection cable, белый. Moulded and of compact size. Signal latching in case of glass breakage. Power supply via alarm control panel. NO contact.
  • VdS (German assn. for property insurers) no.: G 196614, class B
  • Detection range: 1.5 m max.
  • Standby current: < 10 µA
  • Power supply: 3-16 V
  • Alarm switches: approx. 3.7 mA/6 V
  • Admissible ambient temperature: -25 град.C to +70 град.C
  • Размеры: 19 x 19 x 11 мм
  • Bec: 66 g

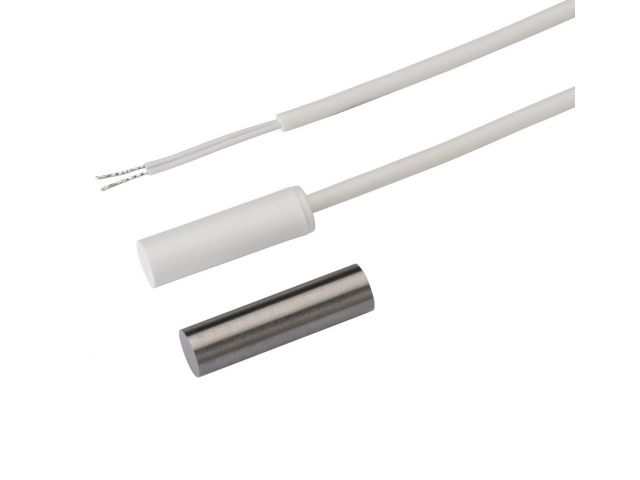

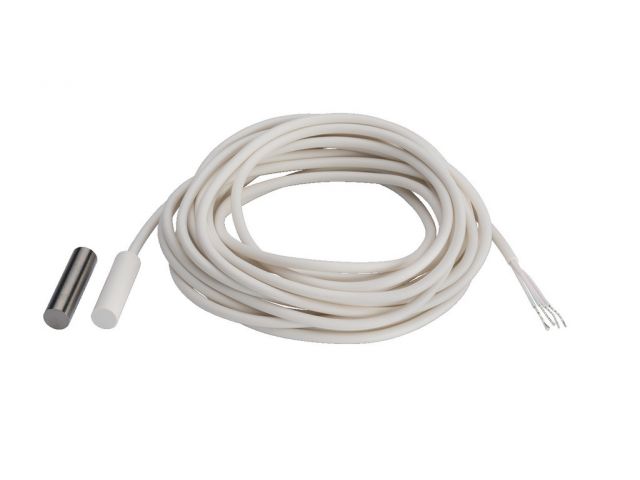

VDS-34FF/WS
VDS-34FF/WS
Reed contact,
to be used in alarm systems for monitoring and securing doors and windows.
  • For flush-mounting, pulsed operation
  • Designed as NC contact/opening detector
  • Contact rating: DC 30 V/0.1 A max.
  • Magnet (AINiCo500): диам. 8 x 30 мм
  • Connection cable: 4 cores
  • Cable length: 4 m
  • VdS (German assn. of property insurers) approval number: G199538, class B
Attention:
The specifications stated are maximum values. Even a short-term overload may lead to damage of the contact! The reed contact is suitable for use with DC voltage only!

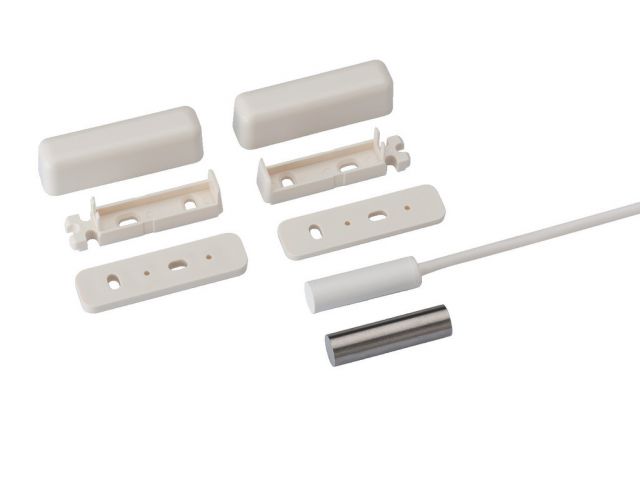

VDS-34SFF/WS
VDS-34SFF/WS
Reed contact,
to be used in alarm systems for monitoring and securing doors and windows.
  • Optionally flush mounting or surface mounting with supplied cases, pulsed operation
  • Designed as NC contact/opening detector
  • Contact rating: DC 30 V/0.1 A max.
  • Magnet (AINiCo500): диам. 8 x 30 мм
  • Connection cable: 4 cores
  • Cable length: 4 m
  • Type of mounting: for parallel mounting
  • VdS (German assn. of property insurers) approval number: G199538, class B
Attention:
The specifications stated are maximum values. Even a short-term overload may lead to damage of the contact! The reed contact is suitable for use with DC voltage only!
VOXOUT
VOXOUT
Universal GSM telephone dialling unit
In case of an alarm, it allows to send messages (voice messages, SMS messages, CID) via the GSM network.
  • Built-in dual band GSM interface
  • Menu-controlled prograммing (German)
  • Up to 8 telephone numbers can be assigned to each alarm event
  • Remote control and remote access by entering the user code
  • LCD
  • 5 connections, to be prograммed either as alarm input or alarm output
  • Contact ID protocol for alarm control panels
  • Audio feature
  • Simulation of an analogue telephone line
  • Offset antenna with magnetic base and 2.8 m antenna cable
  • Power supply: DC 13.8 V/2 A max., standby: 150 mA
  • Admissible ambient temperature: 5-40 град.C
  • Размеры: 140 x 120 x 35 мм
  • Bec: 280 g
  • A SIM card with deactivated PIN code request is required for operating the VOXOUT. This card is not in the scope of delivery
